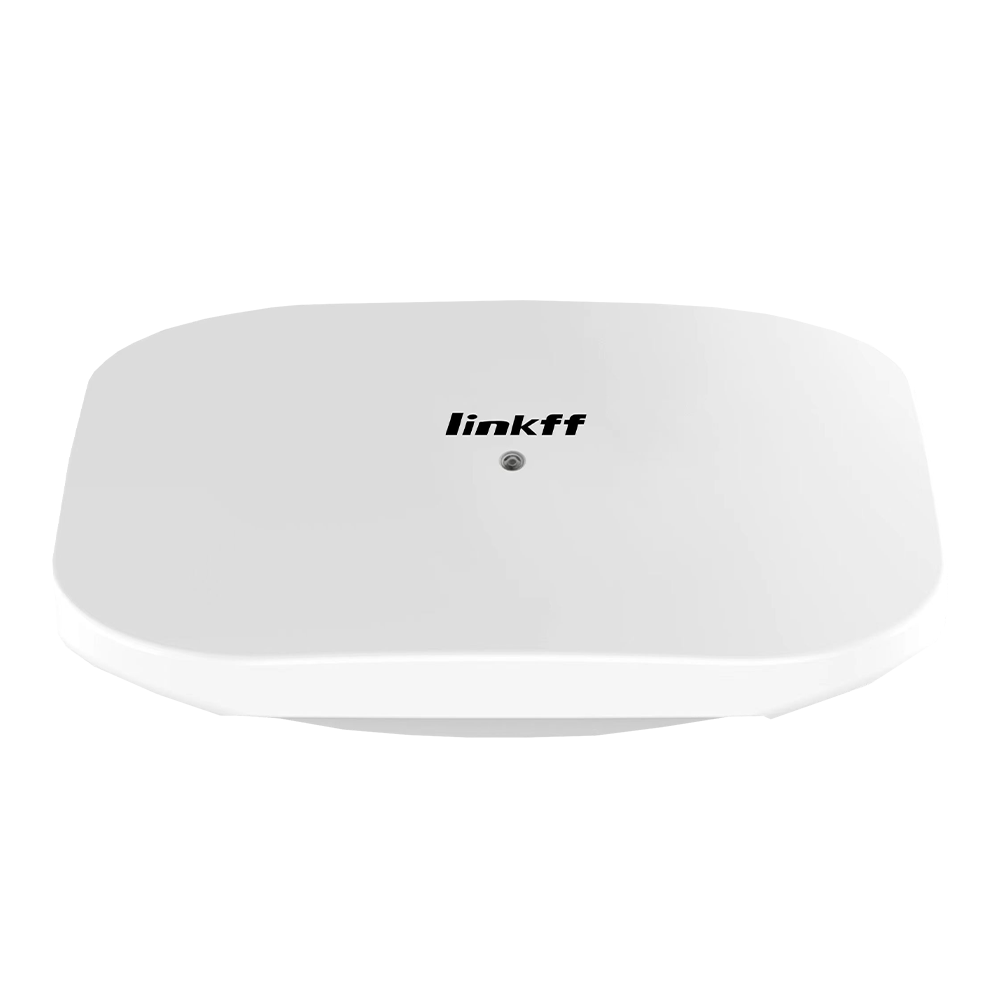

FF-SX3000A
Wifi6 Indoor Access Point
Product Overview
FF-SX3000AIt is a Wi Fi access point that can provide high-density indoor environments such as corporate offices, bars, coffee shops, etc., and provides ultra fast dual gigabit high-speed wireless AP (wired gigabit, wireless gigabit). Both 2.4GHz and 5GHz support the new generation WiFi 6 (802.11ax) technology, with a dual frequency parallel transmission rate of up to 2976Mbps (2.4GHz: 574Mbps, 5GHz: 1201Mbps). Compared to WiFi 5 routers, the wireless rate is increased by nearly 50% and the transmission distance is longer; High performance dual core processor, comprehensively improving network load capacity, faster data forwarding, and more stable long-term operation; Adopting OFDMA and MU-MIMO technology to meet the needs of more devices accessing the internet simultaneously, the transmission efficiency is significantly improved, and the latency is significantly reduced. Playing feverish games and watching ultra clear videos for multiple people online is smoother, making it the first choice for home smart home network networking
★ Complies with IEEE 802.11a/b/g/n/ac/ax standard protocol
★ Complies with IEEE802.3, IEEE802.3u, and IEEE802.3ab standard protocols
★ Dual band wireless concurrent rate 2976Mbps
★ Discussion on Dual Core High Performance Main Chip Processor议
★ Support WPA-PSK, WPA2-PSK, WPA-PSK+WPA2-PSK, WPA3-SAE encryption
★ Two 10/100/1000Mbps adaptive network ports
★ 256MB memory large storage design
Product specifications
|
Hardware specifications |
||
|
CPU |
|
MT7981BA+7976CN+7521AE |
|
FLASH |
|
16MB |
|
DDR |
|
256MB |
|
Wired standard |
|
IEEE802.3,IEEE802.3u,IEEE802.3ab |
|
Ethernet interface |
|
10/100/1000Mbps WAN port*1 support PoE 48V 10/100/1000Mbps LAN port*1 |
|
Antenna |
|
2.4GHz：3dbiBuilt in omnidirectional antenna ; 5.8GHz：Built in directional antenna |
|
Push-button |
|
Reset Button *1 |
|
Power |
|
DC import 12V/1A PoE 48V |
|
Pilot lamp |
|
LED*2( LAN、WAN) |
|
Software specifications |
||
|
MESHG networking |
|
support |
|
Micro AC function |
|
Support (When there is no AC in the network, the AP can be set to Micro AC, and logging in to any of them can view and manage all APs in the network) |
|
Number of SSIDs |
|
4（2.4GHz）+4（5GHz） |
|
Wireless encryption |
|
Supports encryption/non encryption/hiding |
|
User isolation |
|
Terminal isolation |
|
Wireless MAC address filtering |
|
Support for black and white lists |
|
VLAN settings |
|
support |
|
Transmission power setting |
|
support |
|
Bandwidth settings |
|
support |
|
Channel Settings |
|
support(Supports automatic optimization of optimal channels) |
|
Wireless client limit |
|
support |
|
device management |
|
Support Chinese, English, Spanish WEB management |
|
system log |
|
support |
|
Restore factory settings |
|
support |
|
Backup Configuration |
|
support |
|
Import Configuration |
|
support |
|
Software upgrade |
|
support |
|
Network Diagnostics |
|
support |
|
Wireless specifications |
||
|
Wireless standards |
|
IEEE 802.11a/b/g/n/ac/ax |
|
Wireless rate |
|
2.4GHz & 5.8GHz：2.4GHz:574Mbps，5.8GHz:1200Mbps |
|
Wireless encryption method |
|
WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK |
|
Other |
|
|
|
Working Temperature |
|
-10℃~55℃ |
|
Storage Temperature |
|
10%~90% RH（non-condensation） |
|
Working Humidity |
|
-40℃~80℃ |
|
Storage Humidity |
|
5%~90% RH （non-condensation） |
|
Product Size |
|
190*190*50mm |
