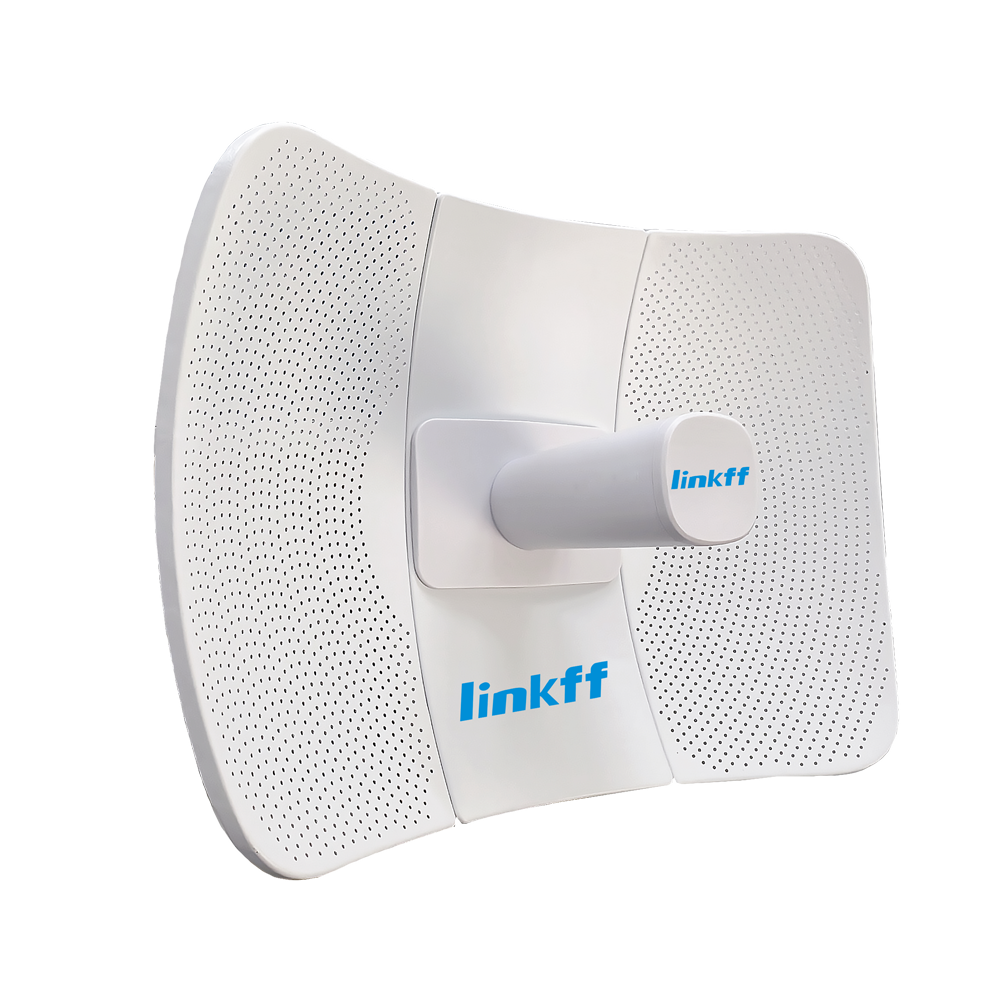

FF-W10A
Product characteristics
- Adopt Qualcomm engineering chip, stable and reliable performance;
- Support point-to-point, point-to-multipoint bridge, flexible application, to meet the needs of different application scenarios;
- 8G band, stronger anti-interference ability, not affected by the external environment, more stable transmission,
- Support spread spectrum, can choose more channels, stagger interference frequency band, wireless transmission rate up to 300Mbps;
- Adopts high-power PA circuit design, upto 29 dBm transmission power, 26dBi double-polarized parabolic mesh antenna, strong signal strength, longer transmission distance, 0-15 km barrier-free and stable transmission;
- Support timed restart, reduce the system operation cache, optimize the system operation, so that the equipment can run for a long time without delay;
- Support to hide and bridge SSID wireless signal, to avoid wireless terminals to search the signal, to avoid malicious attacks on network transmission data, to ensure the security of user data;
- Support 24V PoE power supply, plug and play, more flexible and convenient wiring;
- Outdoor rainproof design, IP65 protection grade, rain, dust, wind, sun protection, easy to adapt to a variety of harsh outdoor environment, to ensure long-term stable operation of equipment;
- The appearance of professional wind design, strong wind resistance, simple and convenient installation, can be wall hanging, holding pole fixed installation;
- Suitable for major outdoor application scenarios, such as: outdoor site monitoring, power monitoring, scenic spot monitoring, factory monitoring, dock monitoring, community monitoring, outdoor network transmission and other application scenarios.
Product Specifications
|
Product name |
5.8G high power long distance sector wireless bridge |
|
|
Product Model |
FF-W10 |
|
|
Hardware Specifications |
||
|
Hardware system |
Main chip |
AR9344 |
|
Memory |
DDR2 64MB |
|
|
FLASH |
8MB |
|
|
PA |
High Power PA |
|
|
Wireless parameters |
Protocol standards |
IEEE 802.11a/n |
|
Operating frequency bands |
5.8G: 5180MHz to 5825MHz |
|
|
Wireless rate |
300Mbps |
|
|
Transmit power |
27dBm ± 2 dBm |
|
|
Physical interface |
Network interface |
1 10/100Mbps LAN/WAN RJ45 Ethernet port (24V PoE power supported) |
|
Hardware buttons |
1 RESET button |
|
|
Antenna type |
Antenna type |
26dBi double polarized parabolic mesh antenna |
|
Indicator light |
LED indicator |
POWER, WAN/LAN, WIFI, 3 lights, in that order |
|
Power/Power consumption |
Power supply mode |
24V PoE power supply |
|
Machine power |
The < 8 w |
|
|
Product accessories |
Mainframe |
5.8G High power long distance sector wireless bridge *1 |
|
Antenna |
A set of 5.8G parabolic antennas |
|
|
Fixed base |
A set of fixed bases |
|
|
Power adapter |
24V 0.5A PoE power supply |
|
|
Other |
Quick Installation Guide *1, Warranty card *1, Certificate *1, Stainless steel hoop *1 |
|
|
Appearance/Packaging |
Appearance color |
white. |
|
Product size |
400mm*280mm*250m (L*W*H) |
|
|
Package size |
315mm*200mm*165m (L*W*H) |
|
|
Weight |
< 2 kg |
|
|
Other |
Optimal power distance for PoE cables |
Within 65 meters (Super Category 5 cable or above) |
|
Bridging distance |
0-15 km |
|
|
IPC with machine capacity |
15 way, no stuck, no delay |
|
|
Installation method |
Pole installation, wall-mounted installation, bracket installation |
|
|
Level of protection |
IP65, 2KV lightning protection |
|
|
Software Specifications |
||
|
Network |
Work mode |
Wireless bridge, wireless router, Wireless AP, wireless terminal, wireless relay |
|
WAN port access mode |
PPPoE dialing, dynamic acquisition, fixed IP |
|
|
MAC address binding |
Support |
|
|
Uplink and downspeed display |
Support |
|
|
LAN setup |
Support |
|
|
DHCP Server |
support |
|
|
Wireless Settings |
Wireless channel modification |
Supported, support spread spectrum |
|
Bandwidth Settings |
Support |
|
|
SSID Hiding |
Support |
|
|
Wireless power regulation |
Support |
|
|
User isolation |
Support |
|
|
User Management |
Support |
|
|
Multiple SSIDs |
Support |
|
|
Encryption mode |
WPA2-PSK |
|
|
Uplink and downlink rate display |
Support |
|
|
Systems administration |
Web interface Configuration |
Support |
|
System language |
Chinese/English supported |
|
|
Manage password changes |
Support |
|
|
Firmware upgrades |
Support |
|
|
Firmware file import and export |
Support |
|
Product Description
Product size
Packing list
|
Name |
Quantity |
Units |
|
Bridge host |
1 |
Taiwan |
|
Center reflector plate |
1 |
a |
|
Side reflector plate |
2 |
a |
|
Fixed base |
1 |
a |
|
Universal ball head |
1 |
a |
|
Universal ball nut |
1 |
a |
|
Waterproof cover for network port |
1 |
a |
|
Stainless steel hold hoop |
1 |
a |
|
24V PoE power supply |
1 |
a |
|
Wall mounted bottom plate |
1 |
a |
|
Screws |
1 |
package |
|
Quick installation Guide |
1 |
Copy of the |
|
Warranty card |
1 |
Copy of the |
|
Certificate of conformity |
1 |
Copy of the |
Product application
1, wireless monitoring transmission point-to-point application 1
Two, wireless monitoring transmission point-to-point application 2
Third, Internet of Things data transmission application
- Internet wireless transmission application 1
- Internet wireless transmission Application 2
