FF-AP8A

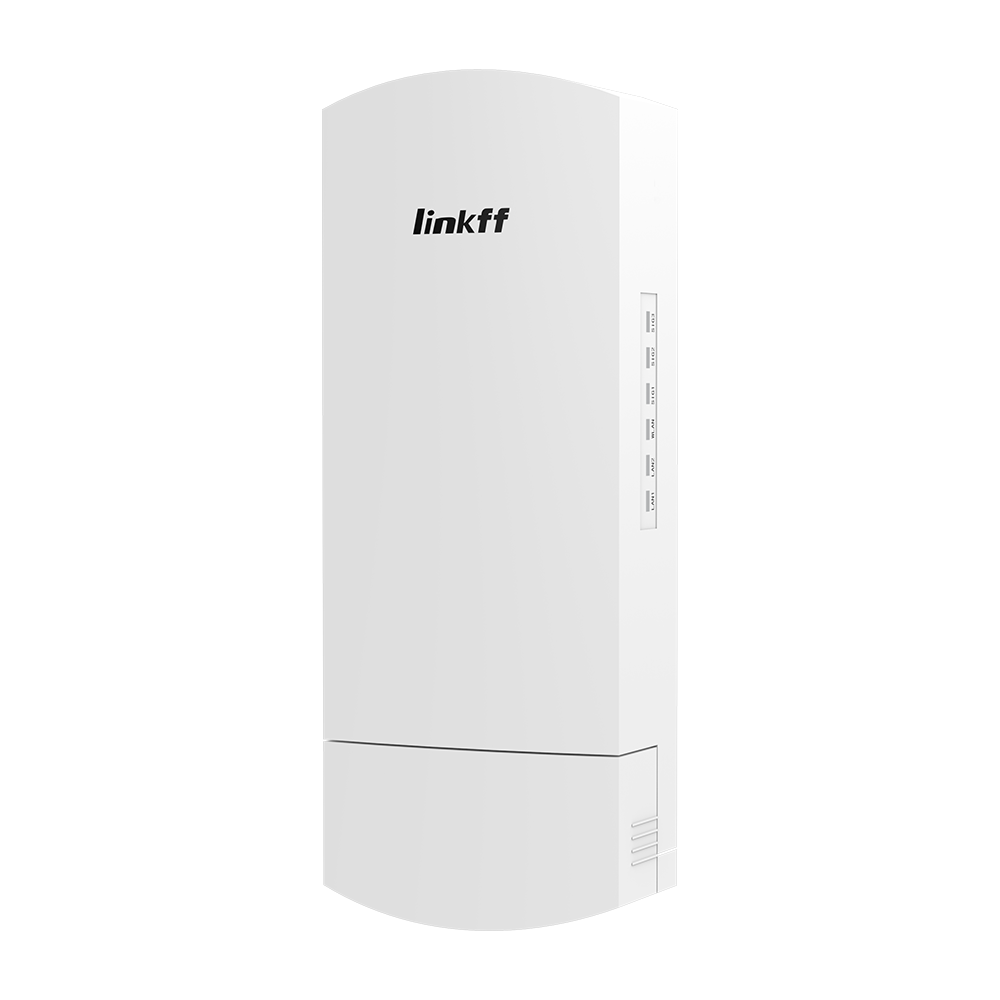

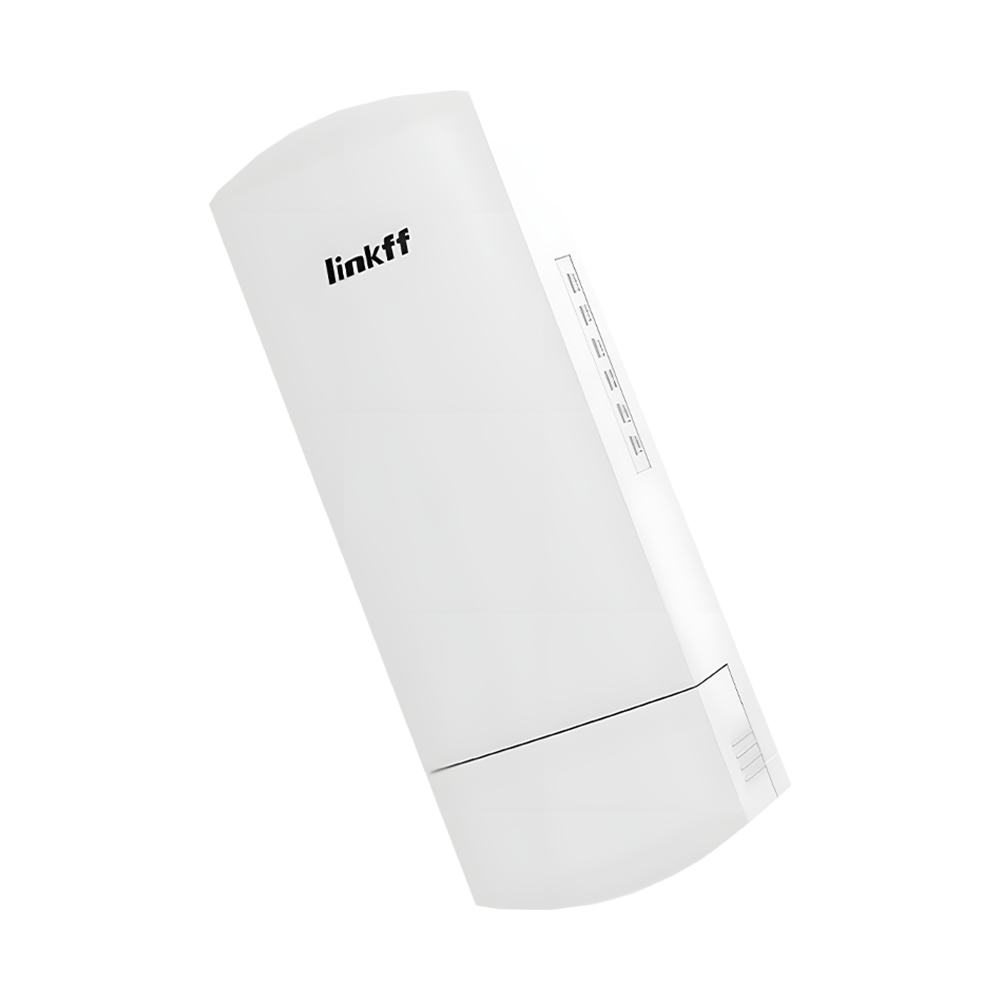

FF-AP8A is a high performance 2.4GHz 11n 300Mbps wireless outdoor bridge CPE. It adopts MediaTek MT7628 chipset, comply with IEEE 802.11b/g/n MIMO standard, and directional 12dBi high gain antenna, it supports a transmission distance up to 1KM. It is ideal to use for CCTV/IP camera data transmission for its stable wireless data transmission and performance.

Category:

Related products




Main Features:

  • Complies with 2.4GHz IEEE802.11b/g/n standard,the Wi-Fi data rate is up to 300Mbps.
  • 100mW high RF powerand high gain antenna design, up to 1 kilometers long distance transmission
  • Adopt MediaTek MT7628chipset and external PA to have a better anti-interference and stable performance
  • Support 12~24V passive PoE input and DC 12V output to supply power to other IP Camera or AP, which makes the networking construction convenient and cost saving
  • IP65 durable weatherproof enclosure, ESD and surge protection design protects the access point against harsh outdoor conditions and provides stable wireless coverage
  • Good compatibility and advanced anti adjacent channel interference ability; It can adjust to the optimum transmission speed automatically according to the actual signal strength and transmission distance.



Hardware Specification

CPU

MT7628

Standards Comply

IEEE802.11b/g/n, IEEE802.3u, IEEE 802.3x

DDR

8Mbyte

FLASH

2Mbyte

Power Supply

Passive POE 12~24V input, DC 12V output

Antenna

Internal 12dBi directional panel dual-polarization antenna                     (horizontal beam 60º,  Vertical beam 25º)

RF Power

2.4GHz  20.0 ± 2.0dBm

Ethernet Ports

2x 10/100Mbps RJ45 LAN Ports

Reset Button

1x Reset button, Restore factory default settings

Mode switch

AP/Client mode toggle switch

Firmware upgrade

Through Web and TFTP

LED Indicator

POWER, LAN, RSSI1, RSSI2

Data Transfer Rate

2.4GHz 300Mbps

Transmission Type

DSSS

Modulation Type

OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK

RF Frequency range

2.412 GHz ~ 2.484GHz (Channel 1~13)

Product Size

154*78*51mm

Environmental Requirement

Working Temperature

-20~+65°C

Working Humidity

10%~95% RH (non-condensation)

Storage Temperature

-40~+85°C

Storage Humidity

10%~95% RH (non-condensation)

Lightning Protection

Common mode 1.5KV, differential mode 1KV
